Hacking Techniques & Intrusion Detection

                     Metasploit Framework

                            Outline - 1

What is MSF?

• Metasploit Framework

 – Architecture

– Components

 – Libraries

 – Interfaces

 – Modules

– Utilities

 – Plugins

• MSF Core Commands

                                    Outline - 2

• MSF Database

    – Basic Usage

• Auxiliary Modules

• Payloads

• Generating Shellcodes

• Creating Executable Files

• Encoding Executables

• Multi Handler Exploit

• Meterpreter

    – How it works

    – Design Goals

 • MSF Evasion

• DEMO(s)

What is MSF?

• Not just an open-source tool!

 • It‟s an Exploitation Framework designed for security researchers and pentesters with a uniform model for rapid development of:

 – Recon,

 – Exploits,

 – Payloads,

 – Encoders,

 – Vulnerability Testing

 – Post-Exploitation

 – Pivoting

 – Others? (please add)

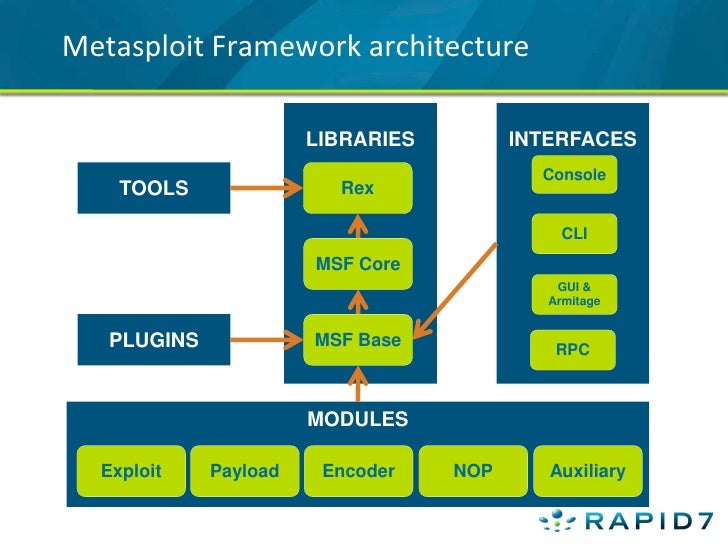

MSF Architecture

MSF Components

• The Metasploit Framework is a modular system based on a few core components:

    – Libraries,

    – interfaces,

    – modules,,

    – mixins,

    – and plugins.

MSF Libraries

• Rex (Ruby Extension Library): – Provides Sockets, protocols, text transformations

• Msf::Core (Core library / msfcore): – enables exploits, sessions, and plugins to interact with the different interfaces.

• Msf::Base (Base library / msfbase): – provides wrapper routines and utility classes that you can use to easily work with the Core library.

Metasploit Interfaces

• MSFconsole  interactive

• MSFcli  scripting

• MSFweb  as the name implies

• MSFgui  java based GUI

• and Armitage  interactive GUI

MSF Modules

• Core components of MSF

• A piece of software that can perform a specific action. (ex: exploitation, fuzzing, and scanning).

 • Modules are found in the following directory:

 • /metasploit/msf3/modules. • Categorized by type and then by protocol.

• MSF Modules include:

    – Exploit

    – Auxiliary

    – Post-Exploitation

    – Payload

    – NOP generator

    – Payload encoder

MSF Utilities

• MSFpayload

   – Generate shellcode and executables.

• MSFencode

   – Alter payloads so that the original payload does not contain any bad characters.

• Msfvenom

   – Combination of both MSFpayload and MSFencode, which provides standard CLI options and

       increased speed

MSF Plugins

• Plugins work directly with the API.

• Manipulate the framework as a whole.

• Plugins hook into the event subsystem.

• Automate specific tasks which would be tedious to do manually.

• Plugins only work in the msfconsole.

• Plugins can add new console commands.

• Extend the MSF functionality.
